Introduction
Fiber laser cutting machines—often referred to as fiber laser cutters—have become a star product in the metal fabrication industry, thanks to their high precision and efficiency. However, with so many different models and suppliers available, how can you decide which machine suits your needs? Drawing on my 15 years of experience as a sales engineer in this field, I have compiled this laser cutter buying guide to help you make an informed decision regarding equipment fundamentals, power selection, budget planning, investment returns, and more.
1. Basic Principles and Main Components of a Fiber Laser Cutting Machine
Fiber Laser Cutting Machine
A fiber laser cutting machine uses a high-energy laser beam generated by a fiber laser source to cut materials. The laser, typically produced in an ytterbium-doped fiber, travels through a transmission fiber to the cutting head, where it is focused by a lens onto the workpiece to create a high-temperature melting cut. An auxiliary gas (such as oxygen or nitrogen) then blows away molten debris to produce clean cuts. Compared to traditional CO₂ lasers, fiber lasers offer stable beam quality and higher energy conversion efficiency, making them faster and more precise for metal cutting.
Key Components Include:
- Laser Source (Fiber Laser): The core component, generating the laser beam used for cutting. Fiber lasers (often ytterbium-doped) have a long service life and require minimal maintenance. The power rating of the laser source directly affects cutting capacity.
- Transmission Fiber: Delivers the laser beam from the source to the cutting head. Fiber-based transmission is flexible and has very low energy loss.
- Cutting Head: Houses the focusing lens set and nozzle, focusing the laser onto the material while blowing auxiliary gas at high pressure. Modern cutting heads often include auto-focus functions and capacitive height sensing, maintaining optimal focal position and preventing collisions with uneven sheets.
- CNC System (Controller): The “brain” of the laser cutter, typically comprising a CNC controller and servo drives. It executes pre-programmed cutting paths and precisely coordinates laser output with machine movement. A user-friendly interface and stable motion control are critical for high-quality, automated cutting.
- Machine Bed and Motion System: The bed is the mechanical body supporting the workpiece and guiding the cutting head along X, Y, and Z axes. Premium beds are made from heavy-duty cast iron or welded steel plate, thoroughly stress-relieved to minimize deformation over time. Linear guides and transmission mechanisms (e.g., gear racks or ball screws) driven by servo motors help achieve stable, precise movement of the cutting head.
- Cooling System: Both the laser source and optical components generate heat during operation and must be cooled, usually by an industrial chiller. A well-matched cooling system is vital for stable operation, especially at higher powers.
Understanding these key components allows you to evaluate a machine’s technology level and build quality—factors that significantly influence cutting performance and reliability.
2. Choosing the Right Power Level and Cutting Format
Fiber Laser Power
How to Choose Laser Power
Laser power is arguably the most critical factor when purchasing a fiber laser cutting machine. It depends primarily on the thickness of the materials you need to cut and your production requirements. Insufficient power won’t cut your desired thickness, whereas too much power means higher costs with minimal benefit if you mainly cut thinner sheets.
- Low Power (1kw-1.5 kW): Best suited for thin sheets (carbon steel or stainless steel up to about 5 mm) or slower-speed applications requiring fine detail. Typical for light fabrication, small-scale job shops, or electronics industry.
- Medium Power (2 kW–3 kw): A balanced option for medium-thickness materials (about 5–15 mm). Machines with 2 kW or 3 kW power are very common in sheet metal shops, delivering a good balance between cost and speed.
- High Power (3 kw+): Ideal for thicker metal plates (15 mm+) and faster throughput. For example, a 6 kW laser can handle up to ~20 mm stainless steel, while 12 kW or even 20 kW can cut steel plates exceeding 50 mm. Keep in mind, higher power significantly increases machine and operating costs. If you primarily deal with thin or medium gauge metal, 3 kW to 6 kW is usually the sweet spot; only opt for 10 kW+ if you frequently cut thick plates in high volumes.
Cutting Format (Bed Size)
The “format” or “working area” of a laser cutter should match the dimensions of the sheets you process. Industry-standard sizes often include 4×8 ft (approximately 1.2×2.4 m), 5×10 ft (1.5×3.0 m), or larger such as 2.0×4.0 m. A 3015 model (3000 mm × 1500 mm) is popular as it accommodates most standard metal sheets. Going with a larger format increases the overall machine cost and floor space requirement, so size your machine to be just slightly larger than your typical sheet dimensions.
3. Evaluating Machine Stability and Cutting Accuracy

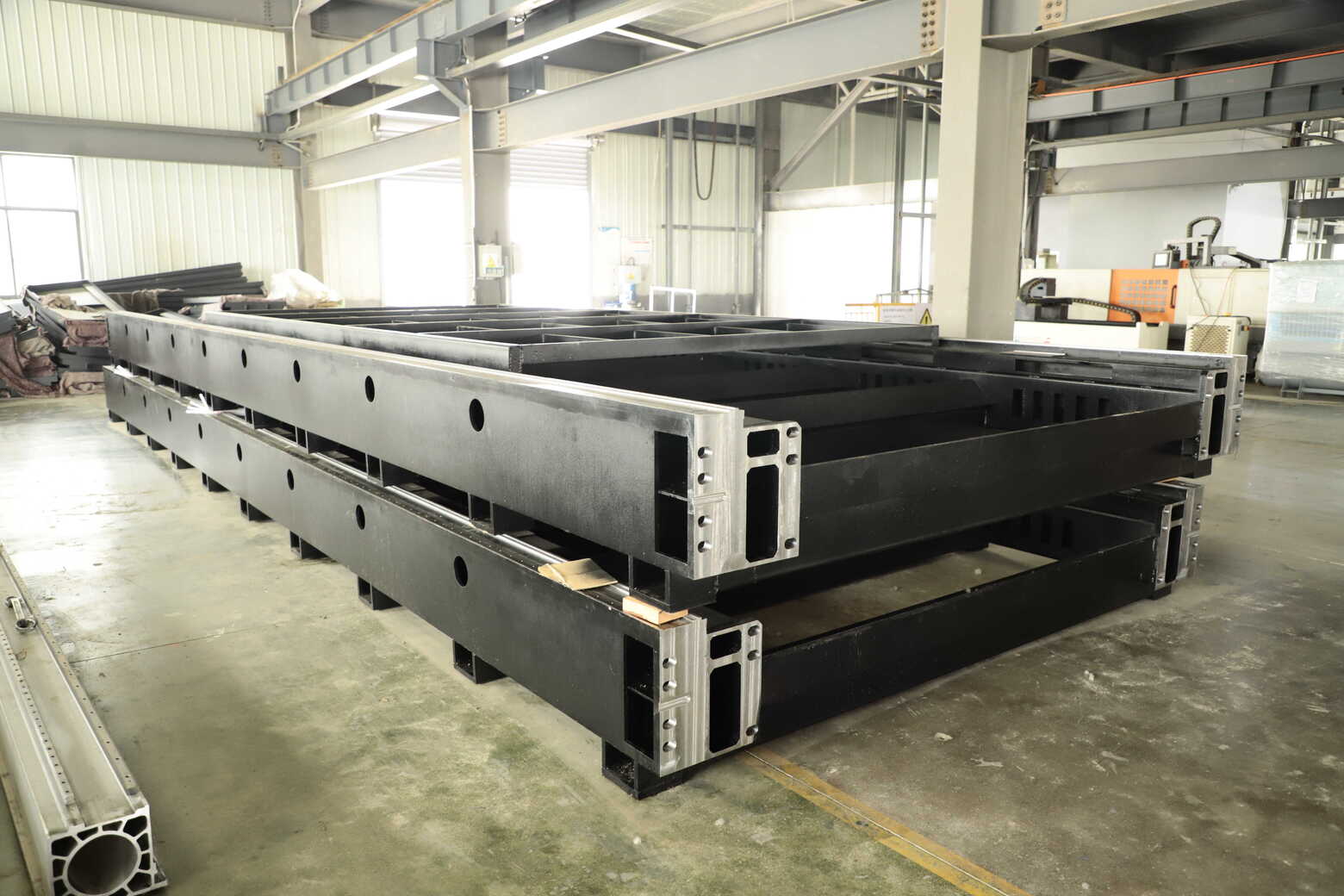

Machine Frame
Power alone does not guarantee cutting performance. Machine stability and precision are crucial for consistent, high-quality results. Focus on the mechanical design and key part configurations:
-
Machine Structure and Bed Rigidity:
A rigid, heavy bed minimizes vibration during high-speed movements, ensuring stable cutting paths. Many high-end machines use an integral cast-iron bed or a welded steel frame that is stress-relieved for maximum dimensional stability. Heavier beds often translate to better damping and less deformation over time. -
Servo Motors and Drive Components:
Cutting accuracy hinges on the machine’s motion control system. High-quality servo motors and precision reducers ensure accurate positioning. Likewise, linear guides and gear/screw systems must maintain minimal backlash for consistent, repeatable motion. When assessing a machine, find out which brand and model of servo motors, linear rails, and transmission mechanisms it uses. -
Cutting Head and Beam Control:
Premium cutting heads incorporate auto-focus functionality and real-time height sensing to maintain optimal standoff distance from the workpiece. This prevents collisions and ensures a consistently tight focus. The brand and features of the cutting head (e.g., from Precitec or RayTools) can be a strong indicator of the machine’s overall standard. -
Cooling System:
Especially for mid to high-power lasers, adequate cooling is essential for stable beam output. If the chiller is underpowered or poorly designed, the machine may overheat, triggering protective shutdowns or output fluctuations. Confirm that the cooling capacity is properly matched to the laser source.
A stable machine should have a solid mechanical frame, precise motion system, and robust thermal management. Examine a machine’s speed, vibration, noise levels, and cut samples. Some manufacturers provide third-party measurement reports on positioning accuracy and repeatability (ideally around ±0.05 mm). Such data can help verify its real-world performance.
4. Budgeting: Price Ranges and Ongoing Operating Costs
Cost price
Equipment Price Estimates (FOB China Port)
- Lower-Power Models (≤1kw-1.5 kw): Usually range from $15,000 to $50,000. These are often compact or entry-level machines suitable for cutting thin metals or for small workshops.
- Medium-Power Models (2–3 kW): Approximately US$18,000 to $60,000. A typical 3 kW machine with a 1.5×3 m bed might cost around US$20,000, making this the most commonly cited bracket for laser cutting machine price inquiries.
- Higher-Power Models (around 6 kW): Typically $50,000 to $150,000 or more. A 6 kW configuration might be listed at ~US$100,000, and additional features like exchange tables or protective enclosures can raise the price.
- Ultra-High-Power (10 kW+): Laser sources of 10 kW or higher see a sharp rise in cost. These can be $100,000 to $300,000 or beyond for 12 kW systems. Some top-tier international brands with fully automated systems (12–60 kW) might go for US$600,000 to over US$1,000,000, especially if you add automation modules.
(Note: These are approximate figures based on the 2025 market. Actual pricing can vary with currency exchange rates, brand, and specific configuration.)
Operating Costs
-
Electricity Consumption:
Fiber lasers feature 30–40% photoelectric conversion efficiency, higher than CO₂ lasers. An average 6 kW fiber laser cutter may consume around 15 kW/hour of electricity at full power (15 kWh), while a 3 kW laser might draw 7–8 kW. This is typically 50–70% lower energy usage than a CO₂ system of comparable capacity. -
Assist Gas:
Cutting metal requires high-pressure gas to clear molten material and protect the cut edge. Oxygen is common for carbon steel, while nitrogen is used for stainless steel or aluminum to produce oxide-free edges. Nitrogen costs more than oxygen due to higher purity requirements. Compressed air can be an option for thin sheets to lower costs. Fiber lasers don’t consume resonator gas as CO₂ lasers do, so assist gas usage depends on material thickness. -
Consumables and Spare Parts:
Fiber laser cutters have relatively few consumables. Nozzles, protective lenses, and ceramic rings in the cutting head are replaced periodically. Costs are modest, and intervals can be weeks or months under moderate use. -
Maintenance:
Fiber laser sources have a quoted lifespan of up to 100,000 hours. Regular upkeep mainly involves cleaning rails, changing cooling water, and ensuring the chiller functions properly. No optical mirrors or laser gas chambers need adjustment, so downtime is minimal compared to older laser systems.
When planning a purchase, factor in both purchase price and lifetime operating costs. Fiber lasers have higher upfront costs but lower power consumption and maintenance expenses, resulting in a favorable total cost of ownership over time.
5. Investment Return Analysis: Typical Applications and Payback Period
investment return analysis typical applications
A fiber laser cutting machine is a significant investment, so naturally you want to know how long it takes to break even. The actual payback period (ROI) depends on your market application and production volume: higher machine utilization and consistent part output accelerate ROI.
Thin Sheet Applications:
Industries like sheet metal fabrication, kitchenware, and signage often deal with metals under 8 mm thick. Fiber lasers excel here, offering faster cutting speeds and better edge quality. For instance, a 2–3 kW model can quickly produce numerous thin-steel parts hourly, increasing production efficiency. Many such businesses see a 2–3 year payback. Outsourcing savings or additional orders can shorten this period further, but if the machine is underutilized, it may take longer.
Medium/Thick Plate Applications:
Fields like engineering machinery, agricultural machinery, or automotive manufacturing often need 10 mm+ steel plate cutting, which usually calls for 6 kW+ lasers. Though high-power units cost more, they can yield higher throughput. A US$150,000–US$200,000 laser cutter might pay for itself in around 3 years if used heavily to replace slower cutting methods like plasma or flame. Consistent, large-volume orders are crucial to maximizing ROI.
In general, many shops target 2–3 years for a return on investment. Indirect benefits—better part quality, faster lead times, the flexibility to take more jobs—also contribute to the overall profitability.
6. Key Points When Choosing a Chinese Laser Cutting Machine Manufacturer
Key points
China has many laser cutting machine manufacturers exporting to the Middle East, Southeast Asia, and South America. However, quality and service vary significantly. As an overseas buyer or distributor, consider:
-
After-Sales Support:
Pick suppliers who offer full after-sales service, including installation and training, plus rapid technical support. Some companies have overseas service teams or partner with local agents to ensure fast response. Verify local presence, warranty coverage (commonly 2 years for fiber laser sources, 1 year or more for the whole machine), and service commitments. -
Spare Parts and Consumables:
Confirm that spare parts (e.g., laser head optics, servo motors) are readily available. Ideal suppliers stock or can quickly ship critical parts overseas. Or the machine should use standard components, so you can source them locally if needed. -
Remote Support Capability:
Long distances mean remote assistance is vital. Check if the manufacturer offers phone, email, or video support, and if they can use remote-control software for diagnosis. Many issues can be resolved without an on-site visit. -
Overseas Installation and Training Experience:
First-time users need on-site setup and hands-on training. Ask if the supplier has field engineers to travel abroad or local partners authorized to commission the machine. A proven track record of overseas installations often ensures smoother logistics and communication. -
Manufacturer Credentials and Reputation:
Look for ISO certification, CE compliance, and other export qualifications. Research online reviews and, if possible, visit the factory to assess production capabilities. Reliable manufacturers emphasize international cooperation and long-term customer relationships.
Several Chinese brands—such as “Light CNC Laser”—are well-known for serving overseas markets with complete pre-sales consultation, on-site installation, and extended support. They remain a good choice if you seek dependable performance, customizable options, and strong technical backup.
7. Common Pitfalls and Purchasing Mistakes
Common Pitfalls and Purchasing Mistakes
Buyers sometimes encounter these errors, which lead to mismatched equipment or operational problems:
-
Pitfall #1: Overemphasizing High Power While Ignoring Actual Needs
Some new buyers believe “higher power is always better,” even if they only process thin sheets. This drives up costs and power consumption without corresponding benefits. If your typical workload involves 3–6 mm steel, 3 kW or 6 kW is sufficient. Higher power adds complexity and maintenance overhead. -
Pitfall #2: Focusing Solely on the Laser Source and Neglecting Machine Stability
The mechanical design, bed rigidity, and motion system quality significantly impact cutting performance. Even a premium laser source won’t perform well on a poorly built bed that vibrates. Inspect the frame material, servo motor brands, and assembly quality carefully. -
Pitfall #3: Ignoring After-Sales Service to Chase the Lowest Price
Some vendors offer rock-bottom prices but little to no technical support or spare parts supply once the machine is delivered. This leads to prolonged downtime and hidden costs. Confirm the vendor’s warranty terms, service response times, and real customer references before buying.
Other mistakes include blindly trusting brand-name components, overlooking software compatibility, and neglecting operator training. A thorough evaluation and professional guidance will help you choose a laser cutter that truly meets your needs.
Conclusion
Investing in a fiber laser cutting machine is a major decision involving many factors—performance requirements, budget, service availability, and ROI. This guide has covered fundamentals from machine construction, power and bed size selection, stability considerations, budgeting, and ROI analysis to supplier selection and potential pitfalls. With thorough research and a clear understanding of your own requirements, a fiber laser cutter can be a game-changer for high-efficiency production and strong financial returns. Best of luck in finding the ideal machine!
If you need further help or want to learn more about reliable Chinese laser cutting machine manufacturers, consider reaching out to “Light CNC Laser” or other reputable suppliers for detailed advice and quotations.
