Introduction
Laser cutting technology for metal materials has rapidly developed worldwide in recent years. Fiber laser cutting machines are now widely used in industries such as automotive manufacturing, aerospace, engineering machinery, sheet metal processing, medical devices, and kitchenware lighting. Compared to traditional plasma and flame cutting processes, fiber lasers offer unique advantages of high speed, high precision, and low energy consumption, accelerating their replacement of traditional low-precision metal cutting methods. The emergence of high-power fiber lasers has broken the monopoly of plasma/flame cutting in thick plate processing. Laser cutting equipment has become a standard configuration in metal processing, with the industry upgrading toward higher power and smarter automation. Looking ahead, laser cutting machines will continue integrating modular design, intelligent control, and digital technologies to expand material and process adaptability, providing high-quality, high-efficiency, and flexible manufacturing capabilities. This guide covers equipment types, selection factors, performance parameters, price ranges, and brand recommendations to help overseas buyers comprehensively understand the metal laser cutting machine market and make informed purchasing decisions.
Equipment Type Overview
Fiber laser cutting machines can be categorized into different types based on structure and application:

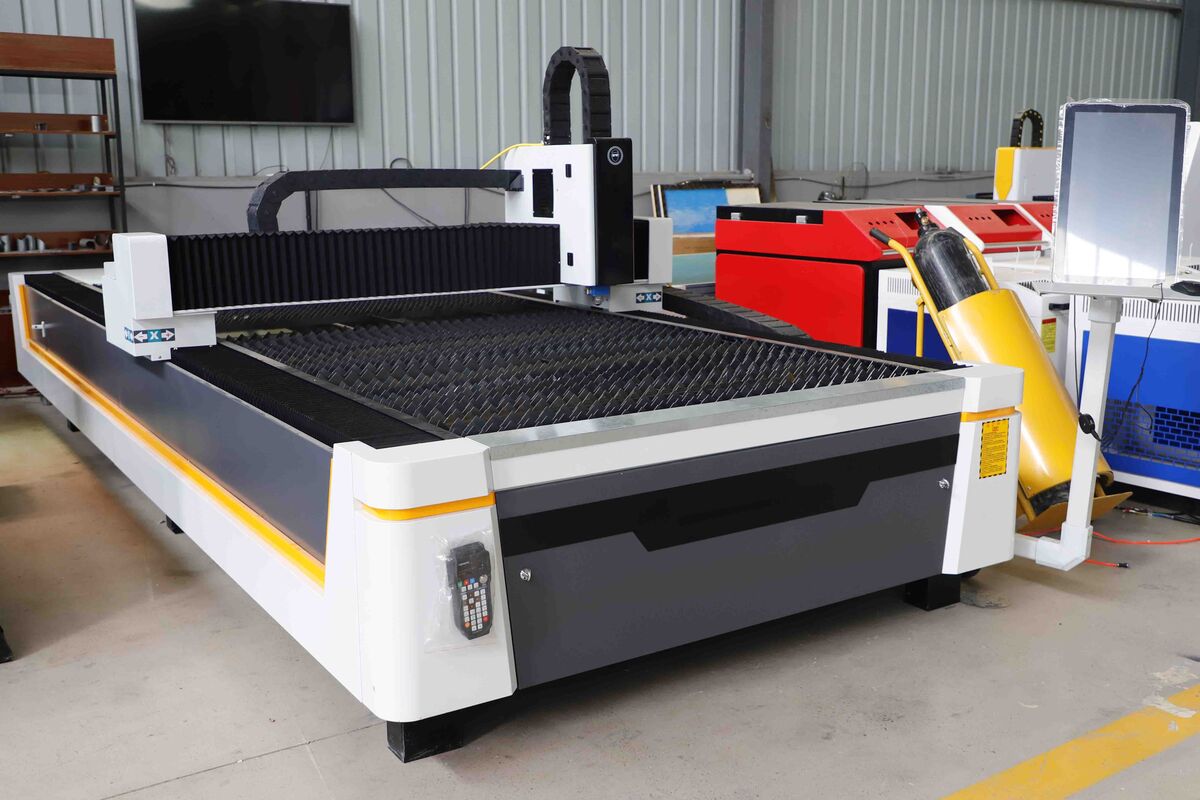

- Flat Plate Laser Cutting Machine (Sheet Metal Machine): Designed for cutting flat metal sheets, equipped with a flat worktable (common standard sizes like 3015, i.e., 3000×1500mm). Ideal for sheet metal fabrication such as cabinets, automotive parts, and engineering machinery components. Flat plate machines generally have robust structures and high speeds, making them the first choice for factories focused on sheet cutting.
Flat Plate Laser Cutting Machine
- Tube Laser Cutting Machine: Features rotating chucks and support devices for cutting metal tubes and profiles. Efficiently processes round tubes, square tubes, rectangular tubes, angle steel, and channel steel, widely used in fitness equipment, furniture manufacturing, oil pipelines, and frame structures. Compared to flat plate machines, tube machines have specialized designs for clamping, rotation, and feeding to ensure stable high-speed cutting of long tubes.
Tube Laser Cutting Machine
- Plate-and-Tube Combination Laser Cutting Machine: Also called dual-purpose machines, integrating both flat plate and tube cutting functions. These machines have a flat cutting table and tube clamping devices, allowing processing of both sheets and tubes on the same equipment.

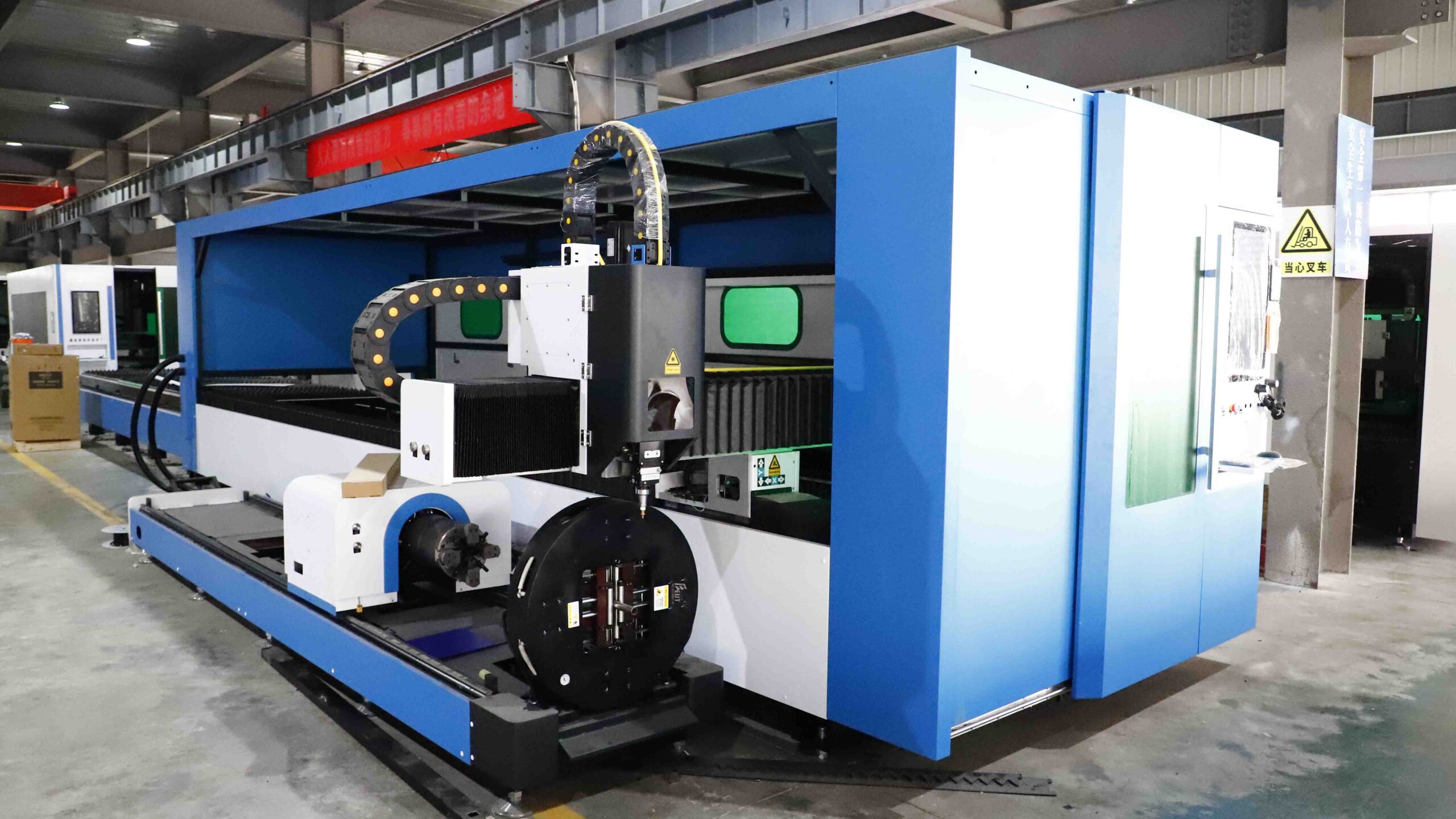

Enclosed Flat Rotary Fiber Laser Cutter
Figure 1: A plate-and-tube fiber laser cutting machine (fully enclosed protective cover) capable of cutting both metal sheets and tubes. This type of equipment suits scenarios requiring diverse product forms, such as architectural decoration companies needing to cut metal sheet screens and tube frameworks. Combination machines improve equipment utilization and flexibility but have more complex structures and higher costs compared to single-function machines.
- Automatic Loading/Unloading Laser Cutting Systems: Equip flat plate or tube laser cutters with automated sheet loading, finished product unloading, and material storage systems. These automation upgrades are ideal for mass production, reducing manual intervention and improving production efficiency. A typical system includes a material storage unit, robotic arms or vacuum suction loaders, and automatic pallet exchangers, enabling unmanned operation. While beneficial for large-scale manufacturing, such systems require significant upfront investment and ample floor space.
Auto Loading Laser Cutter
These categories are not mutually exclusive. For example, high-end flat plate machines may include dual exchange platforms for semi-automatic loading, while 3D five-axis laser cutters serve specialized applications like automotive panel cutting. Buyers should select models based on their primary processing needs.
Key Purchasing Considerations
Different types of buyers prioritize different factors when selecting metal laser cutting equipment:
End Users (Production Factories)
- Focus on performance, quality, and total ownership cost.
- Key factors: Cutting capability (thickness range, speed, precision), reliability, ease of operation/maintenance, and supplier after-sales support.
- Prioritize cost-effectiveness (ROI) over pure price. Also consider delivery time, installation/training, and customization options (e.g., special worktable sizes, fixtures, or software).
Distributors/Agents
- Focus on supply chain partnerships and commercial terms.
- Key factors: Competitive pricing (for resale margins), exclusive regional distribution rights, supplier reliability (timely delivery, product range), certifications (CE, FDA), and technical/parts support.
- Require supplier collaboration in marketing, training, and after-sales logistics.
Brand Owners (OEM/ODM Buyers)
- Focus on OEM capabilities and intellectual property protection.
- Key factors: Customization (branding, software interfaces, special features), quality control systems, production capacity, and confidentiality agreements.
- Seek long-term strategic partners with strong R&D and flexible production.
Summary: Most buyers will weigh these factors differently. Tailor inquiries to your role—end users should request cutting samples and user reviews, distributors negotiate agency terms, and brand owners evaluate R&D teams and NDAs.
Performance Parameters Explained
Critical performance metrics for laser cutting machines:
-
Laser Power (kW): Determines material thickness and cutting speed.
- 1kW: Suitable for thin sheets (stainless steel/aluminum ≤5–8mm; carbon steel ≤10mm).
- 3kW: Cuts stainless steel/aluminum up to 10mm; carbon steel up to 20mm.
- 6kW+: Handles thicker materials (stainless steel 20–30mm; carbon steel >25mm). Avoid over-specifying power—match it to your primary material thickness.
-
Cutting Speed:
- Rapid traverse speed: Up to 100–150 m/min for high-end machines (non-cutting movement).
- Actual cutting speed: Varies by material, thickness, and gas parameters. Request manufacturer test data for your specific needs. Note: Laser outperforms plasma/flame in thin sheets but lags in ultra-thick plates (>30mm).
-
Cutting Precision:
- Positioning accuracy: ±0.05mm for high-quality machines.
- Repeatability: ±0.02mm. Precision depends on beam width (~0.1mm) and thermal effects. Verify metrics for large-format machines (>6m) due to thermal expansion.
-
Material Compatibility & Thickness:
- Fiber lasers cut steel, aluminum, copper, and brass. Reflectivity and melting points affect maximum thickness. Example (3kW):
- Carbon steel: ~20mm
- Stainless steel/aluminum: ~10mm
- Brass/copper: 6–8mm
- Auxiliary gases (O₂/N₂) impact quality and thickness. High-pressure N₂ systems are needed for thick stainless steel.
-
Automation Features:
- Auto-focus cutting heads (e.g., Raytools) adjust focus automatically.
- Automatic loading/unloading boosts efficiency for batch production.
- Nesting software optimizes material usage. Balance automation costs with production scale.
Tip: Don’t rely solely on "maximum" specs—request real-world performance data or on-site trials.
Price Range Overview
Fiber laser cutting machine prices vary by power, configuration, and brand:
-
Entry-Level (1–3kW): $7,000–$16,000. Suitable for small businesses cutting thin sheets. Uses Chinese lasers (Raycus, MAX) and basic configurations.
-
Mid-Range (3–12kW): $20,000–$50,000. Balances performance and cost. Common in SMEs, featuring Raytools/Precitec heads, CypCut controls, and exchange tables. Offers high value vs. Western brands.
-
High-End (10–40kW): $55,000+. For heavy-duty applications. Uses IPG/Coherent lasers, Precitec heads, Yaskawa servos, and full automation. Ideal for shipbuilding and heavy industry.
Brands significantly affect pricing: Western brands (TRUMPF, Bystronic) are premium, while Chinese brands (HSG, Han’s Laser) offer better value. Component choices (IPG vs. Raycus lasers) also impact cost. Compare configurations, not just prices.
Recommended Brands
Chinese Brands:
- HSG Laser (China): Known for high-power machines (up to 40kW), stability, and smart solutions. Mid-to-high pricing with strong R&D.
- Han’s Laser (China): Industry giant with 200+ models. Reliable and globally serviced, but less flexible for customization.
- Bodor Laser (China): Emerging brand with user-friendly designs and overseas support. Competitive pricing but limited ultra-high-power options.
Key Component Brands:
- Raytools (Switzerland): Widely used auto-focus cutting heads.
- IPG Photonics (USA/Germany): Top-tier fiber lasers for high-end machines.
Special Recommendation: Light CNC Laser
- Light CNC Laser: A customer-centric Chinese export brand offering high性价比 solutions. Advantages:
- Service: Multilingual support, 24/7 remote assistance, and on-site training.
- Value: Integrates mature configurations (Raycus/IPG lasers, Raytools heads) at competitive prices.
- Flexibility: OEM/ODM services for distributors and custom solutions for brand owners.
- Warranty: 2-year core component warranty and robust after-sales.
Other notable brands include HG Tech, Lead Laser, and Bystronic DNE. International giants like TRUMPF and AMADA suit ultra-high-end needs.
Procurement Tips & Notes
- Verify Supplier Credentials: Choose manufacturers with ISO certifications, CE marks, and export experience. Request factory tours or video audits.
- Clarify Technical/Commercial Terms: Define specs (laser brand, power, precision), delivery terms (FOB/CIF), payment terms (L/C), and warranties in contracts.
- Pre-Shipment Inspection: Conduct FAT (Factory Acceptance Tests) via video or third-party inspectors. Ensure proper packaging and logistics (FCL shipping, insurance).
- Installation & Training: Coordinate installation support and operator training. Prepare utilities (3-phase power, cooling systems, gas supply).
- Remote Support: Establish 24/7 communication channels (WhatsApp, email). Use remote diagnostics for troubleshooting.
- Long-Term Costs: Factor in electricity, gas, maintenance, and consumables (lenses, nozzles). Follow maintenance schedules.
- Compliance: Ensure machines meet destination country standards (CE, UL). Prepare safety manuals and protective measures.
Conclusion
Purchasing a metal laser cutting machine from China offers cost advantages but requires careful planning. Match configurations to your needs, select reputable suppliers, and manage logistics and support proactively. With proper due diligence, overseas buyers can acquire high-performance equipment that drives business growth.
